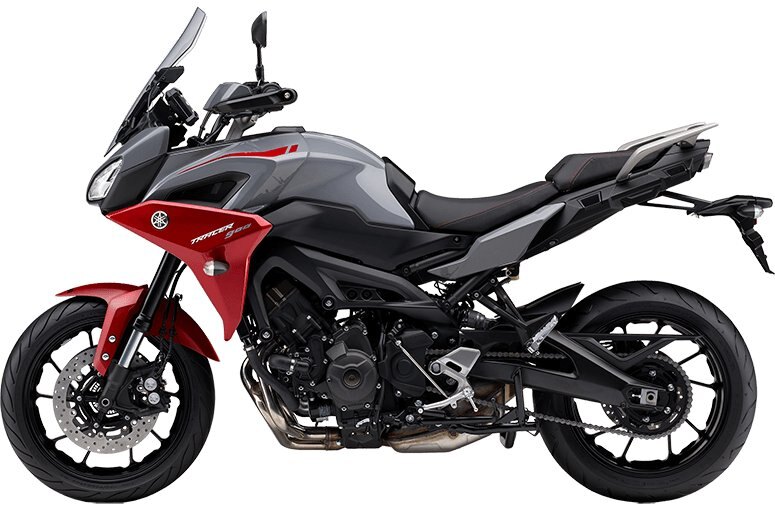

Comfort, performance and value are blended harmoniously into the Tracer 900. With Yamaha's successful CP3 inline three-cylinder engine, a sporty chassis and relaxed ergonomics, the Tracer 900 can tackle the twisties, the open road or the daily commute with poise.
The Tracer 900 utilizes a torquey and powerful 847 cc CP3 (Crossplane Concept) engine that offers usable low-end torque and enough power to satisfy the most experienced sport rider. Yamaha's D-Mode system allows the rider to adjust power delivery based on conditions and preferences.
An adjustable seat, adjustable windscreen, standard ABS, three-level traction control, three D-Modes and an 18-litre tank speak to the incredibly versatile nature of Yamaha's most affordable sport touring machine.
Features & Benefits
Slim, compact, 847cc, DOHC, 4-valve, liquid-cooled, 42.5 degree inclined, inline-three cylinder engine. The engine has been tuned to provide plenty of low & mid-range torque with strong yet linear throttle response.
4-valve, downdraft style combustion chamber
Valve adjustment intervals are every 42,000 kms.
120 degree crankshaft with "even" 240 degree firing order.
Lightweight "coupling force balancer" is used to reduce engine vibration for excellent rider comfort.
"Fracture split" connecting rods feature a "nut less" design.
Lightweight, forged, aluminum short skirt pistons.
Direct ceramic composite plated cylinder uses "liner less" bores
Offset cylinder design
One-piece cylinder and upper crankcase assembly
Lightweight hollow camshafts.
Crankcases feature a "Tri-Axis" layout for the crank, main & drive axles.
"Closed loop" 41 mm Mikuni throttle body fuel injection system.
Yamaha Chip Control Throttle (YCC-T)
Yamaha D-Mode variable throttle control... 3 modes available
Traction control system with 2 modes plus off.
Electronic Control Unit (ECU) utilizes a powerful 32-bit processor for fast control of the injection, engine management & ignition processes.
Air box features dual resonator chambers & unequal internal intake funnel lengths for all 3 cylinders.
Compact 6-speed transmission.
Compact, slipper (back limiter) clutch with assist.
Stylish, compact, low mounted, 3 into 1 exhaust system
Flat design radiator for maximum cooling efficiency.
Liquid-cooled oil cooler maintains stable lubricant temperatures for extended engine life.
Convenient spin-on type oil filter & easy access drain plug for fast oil changes.
Convenient oil level sight glass.
Maintenance-free transistor controlled ignition (TCI).
Air Injection System (AIS... not ram air) injects fresh air into exhaust ports to fully burn any unburnt fuel, further reducing exhaust emissions.
CHASSIS / SUSPENSION
CF (Controlled Filling) die cast, twin spar, diamond-type, aluminum frame.
The riding position is one of the most important features of the Tracer 900 chassis.
Key chassis geometry figures include:
Detachable, round tube steel rear sub frame.
externally mounted, C.F. (Controlled Filling) die cast aluminum, truss-type rear swingarm.
Adjustable, 41mm inverted cartridge style fork offers 137mm (5.4") of wheel travel.
Lightweight, aluminum upper & lower triple clamps.
Adjustable link Monocross rear suspension with 130 mm (5.1") of wheel travel.
ABS equipped, dual 298mm floating front discs squeezed by radial mount, Advic, mono-block, 4-piston calipers.
ABS equipped, 245mm rear disc is squeezed by a lightweight single piston, slide-type Nissin caliper.
ABS or Anti-Lock Braking System.
Lightweight, cast-aluminum 10-spoke wheels.
Adjustable, tapered aluminum handlebar.
Stylish, hand covers / brush guards.
18-litre steel fuel tank.
Separate rider and passenger seats.
Improved, grab rails offer improved comfort and robustness for extra peace of mind.
Passenger grab rails for extra peace of mind.
Dual-display, multi-function meter/instrumentation.
Handy 12 volt DC outlet (max output = 24W & 2A) located beside meter assembly.
Revised front fairing offers a more high-quality appearance with good wind protection.
No tools required, adjustable windshield features 37 mm (1.5") of adjustment.
Eye catching LED headlights & LED position lights.
Centre stand (note: centre stand will not retro fit to the FZ-09).
Brilliant LED rear tail light with unique running / brake light display.
NOTE: The Tracer 900 offers a significant level of power and performance. It is not intended for novice or inexperienced riders.
